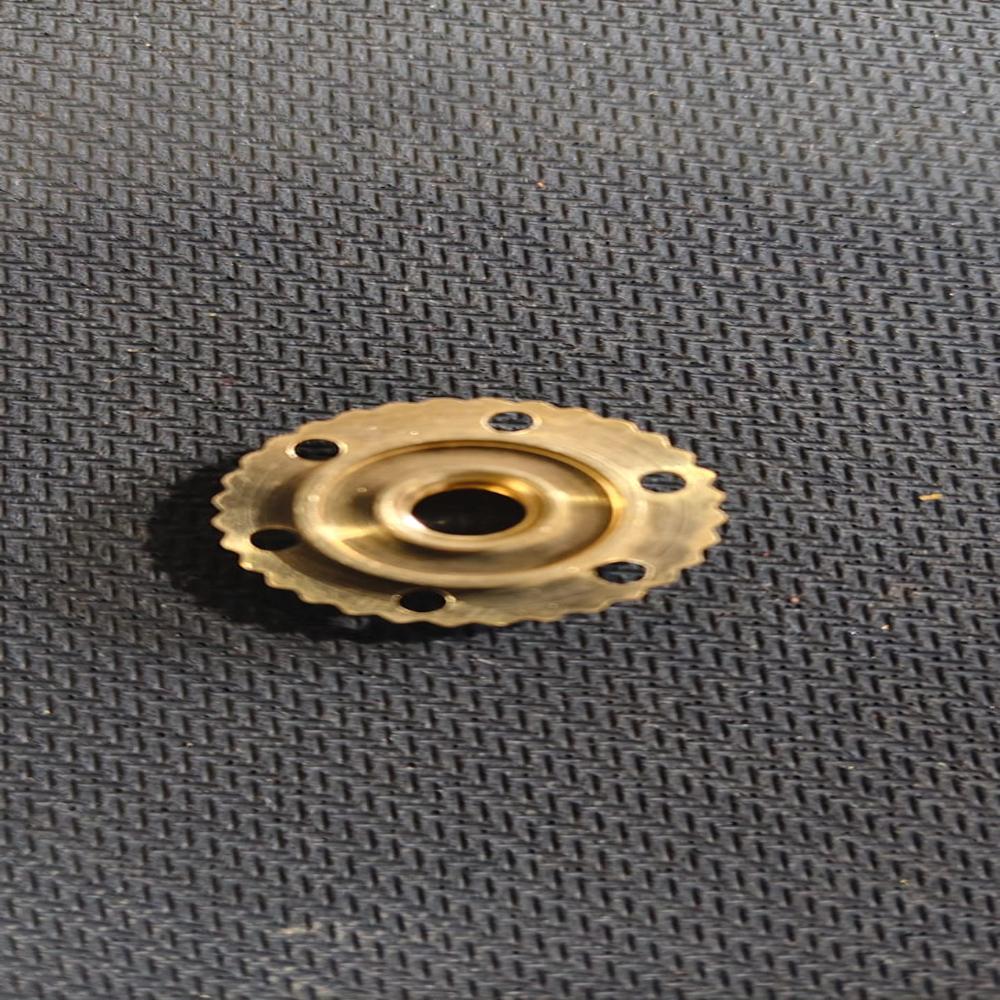

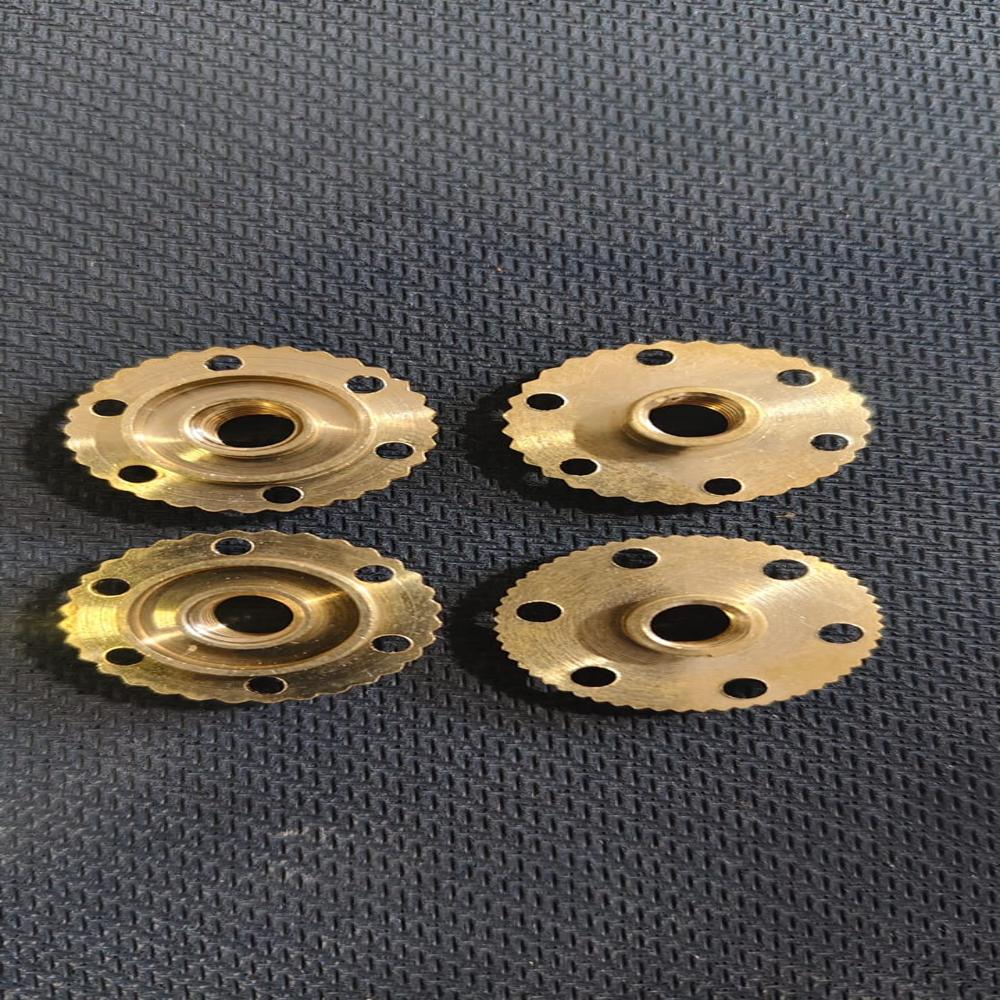

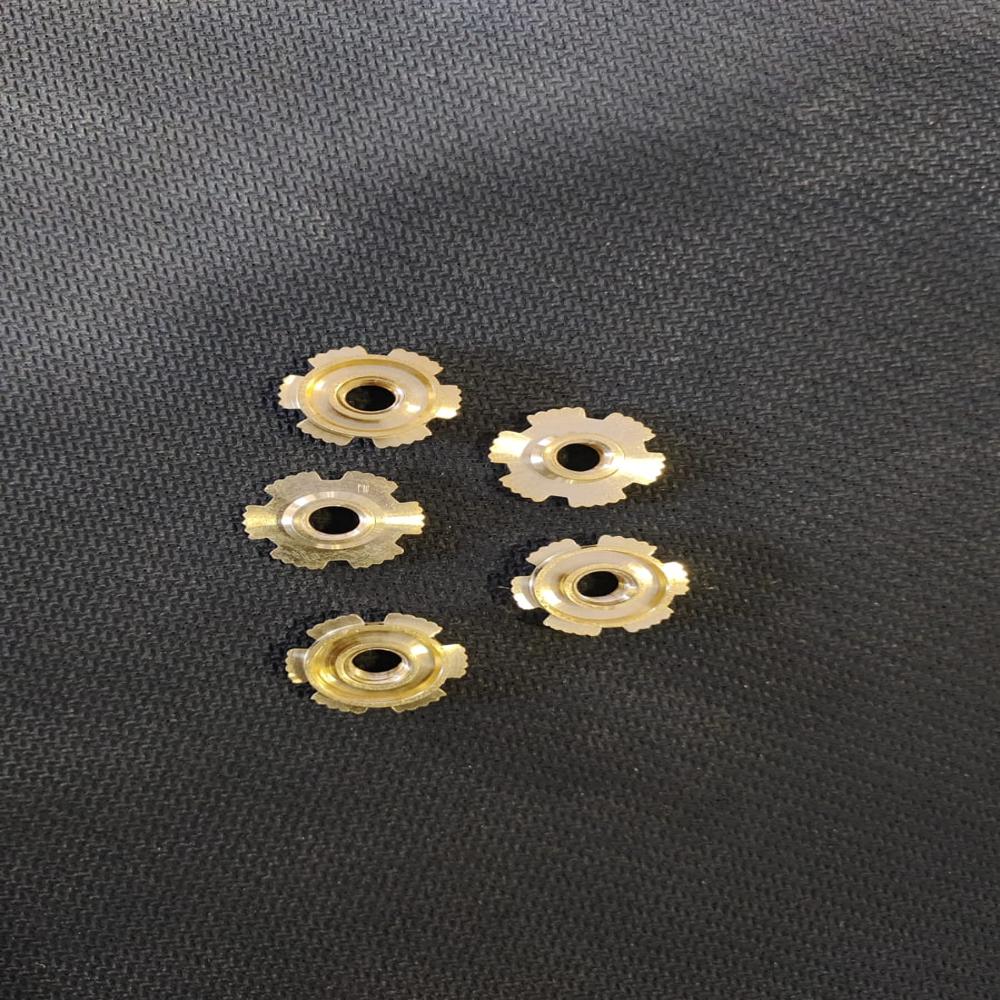

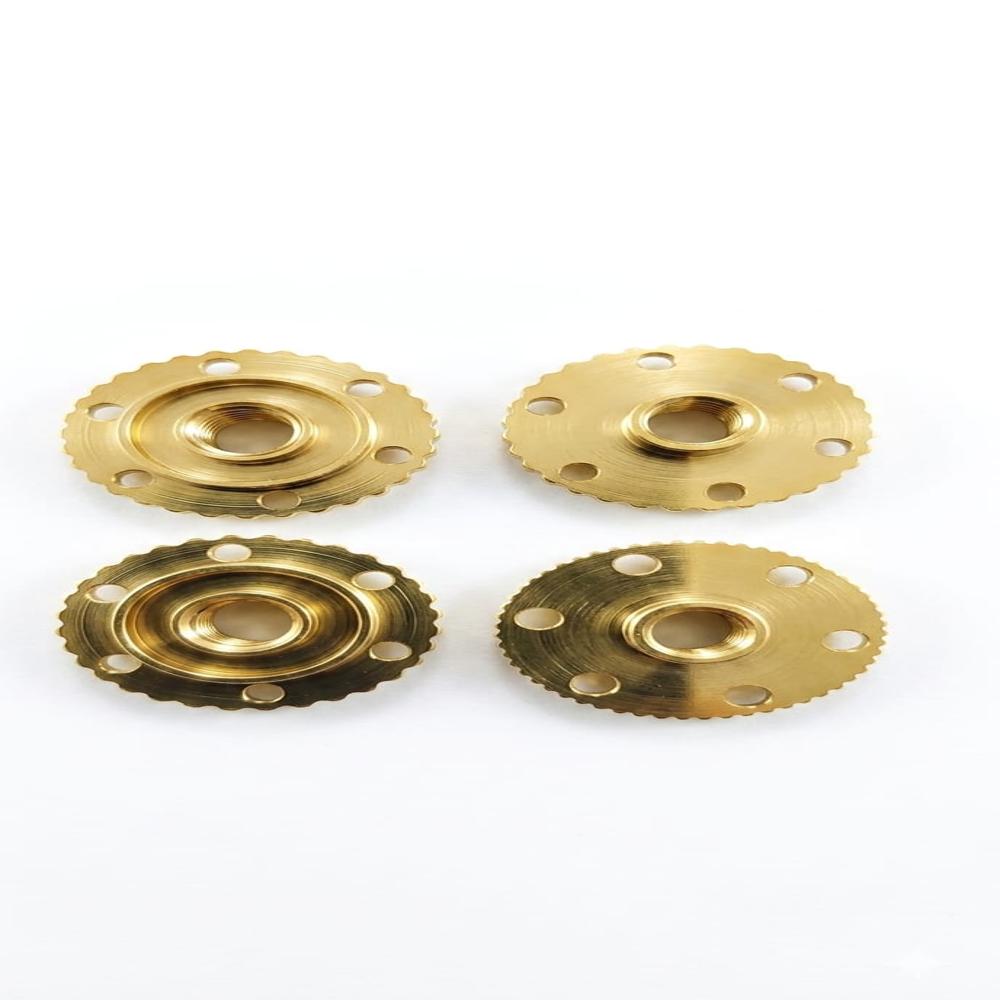

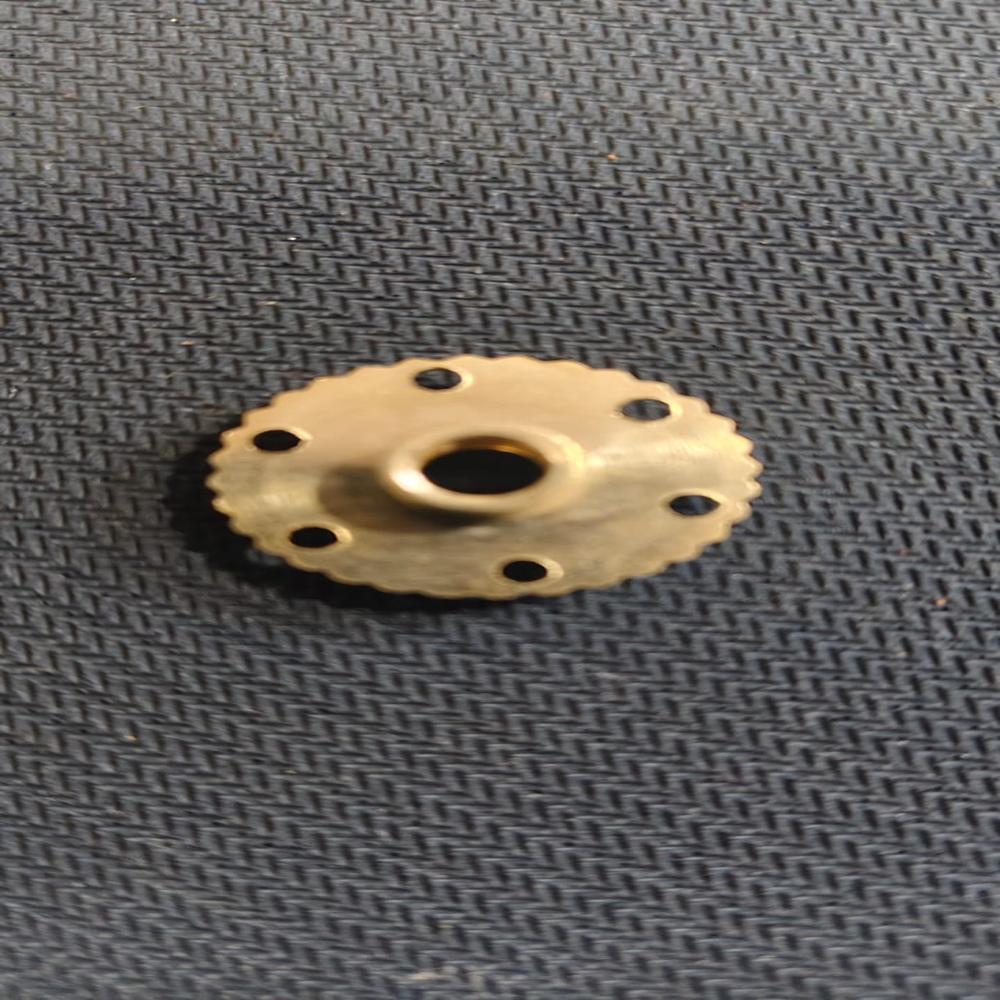

industrial brass coupler insert

An industrial brass coupler insert (often referred to interchangeably as a brass coupling insert, molding insert, or pipe fitting adaptor) is a heavy-duty mechanical component engineered to bridge the gap between two different systems.

Most commonly, it acts as a rugged, threaded metal connection point embedded inside a larger industrial componentsuch as a plastic pipe fitting (CPVC/UPVC), a pneumatic hose hub, or a molded equipment housing.

Key Functions & Why It is Used

• The Plastic-to-Metal Bridge: In modern industrial plumbing and fluid dynamics, pipes and housings are often made of plastics like CPVC or polypropylene for weight and cost savings. However, you cannot securely thread a high-pressure metal valve or gauge into soft plastic. A brass coupler insert is molded directly into the plastic hub, providing a rock-solid metal thread that won't strip.

• Leak-Proof High Pressure Seals: Industrial couplers are precision-machined to handle strict pressure standards (such as BSP, NPT, or ANSI). They ensure a perfectly tight, leak-proof seal for hot/cold water, pneumatic air, or hydraulic fluids.

• Extreme Pull-Out and Torque Resistance: Unlike standard light-duty inserts, industrial coupler inserts have deep, heavy outer grooves, hexagonal shapes, or sharp ridges. When plastic is molded around them, they become permanently locked in place, resisting intense twisting (torque) and tugging (pull-out) forces from heavy machinery.

Technical Specifications

Industrial variants are manufactured under tight tolerances to meet global engineering standards:

• Material Composition: Typically machined from high-grade, leaded brass alloys like CW614N or CW617N. These alloys offer a perfect balance of high tensile strength, excellent machinability, and innate spark resistance (critical in volatile environments).

• Threads: Precision-cut to standard industrial specifications, including NPT (National Pipe Tapered) for airtight seals, or BSP/BSPT (British Standard Pipe) for fluid lines.

• Finishes: Available in a natural brass finish for general plumbing and oil/gas apps, or nickel/chrome plating for added wear resistance and washdown food-grade environments.

Common Industrial Applications

1. Plumbing & Piping Systems (MTA/FTA Fittings)

They are the core metal component inside Male Threaded Adaptors (MTA) and Female Threaded Adaptors (FTA). Used to connect plastic industrial piping to metal pumps, water meters, commercial taps, and chemical lines.

2. Pneumatics & Hydraulics

Embedded into air manifolds and hose couplings. They allow quick-disconnect couplers to be screwed repeatedly into pneumatic machinery without wearing down the host equipment.

3. Industrial Molded Enclosures

Used in heavy-duty electrical boxes, automotive components, and chemical tanks where heavy metal access panels or internal components must be bolted down securely.

Summary: While a standard threaded insert is a small fastener used to put screws into 3D prints or furniture, an industrial coupler insert is a heavy, precision-machined fitting component meant to handle fluid pressure, high torque, and continuous industrial use.
